CFM 防爆系列機型，可依客戶需要(如防爆等級、電源等…)，訂製機器。機型從1600W~22000W，含蓋範圍極大，防爆等級ATEX Z1/Z2/Z21/Z22皆有生產，可依等級選定機型，可省下不必要的花費。詳細的規格內容請電洽本公司詢問，謝謝!

工業級防爆吸塵器

Exposure Limit (OEL)>0.1 mg/m3

HEPA  H14  EN1822(檢附證明文件)(選配)，可有效阻絕0.2microns的微細粉塵，達<99.9995  ﹪的過濾效果。世界最先進的HEPA過濾系統：

1、 馬達前置HEPA，可阻止微細粉塵吸入馬達，使馬達能在最乾淨的環境下運作，馬達壽命更長。

2、 馬達後置HEPA，再進一步的阻絕微細粉塵排入室內。

除了原有的過濾系統外，更提供雙層HEPA過濾，組成完美的過濾保護系統。

標配壓力表裝置及高溫斷電裝置，可隨時監控機器運作狀況，保養方便，減少故障發生。當阻塞時，溫度過高時，立即自動停機。

EC感應式馬達，無碳刷電子IC控制設計。可24小時運轉，且不會造成任何污染。

不銹鋼桶身設計，集塵桶採易於傾倒的機械結構。易於拆卸、傾倒，附安全卡扣設計。配附(可製動式)防靜電導輪。

配件組合50~100mm(B1防靜電特殊配件)

1、B1靜電不銹鋼彎管、靜電直管

2、B1靜電尖嘴吸頭

3、B1靜電吸塵軟管3M

4、B1靜電地板吸嘴

5、HEPA精密過濾器(選配)

最新歐洲ATEX防爆認證，適用各種危險區域等級：(檢附證明文件)：一機一台獨立防爆證明。

undefined

3156 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2. This model is equipped with a silent threephase motor. The container is easy to pull out and to clean. It is used for vacuuming in continuous duston the machines in the chemical, food, electronics and other sectors. This model is available partially or totally ininox aisi 304.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。此機型配備靜音的三相馬達。集塵桶易於拉出清理。多半被使用在化學廠、食品廠和電子廠等各部門。此機型部份或全部由不銹鋼AISI 304組成。

vailable in Z21, Z22, Z2, MAG1, MAG1 DEX versions.

提供使用在防爆區域Z21,Z22,Z2,MAG1,MAG1 DEX機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY


Phases  n° 3
Rated power  kW 1,6 / 2,2
Depression  daPa
Airflow  l/min
Main filter area  cm² 7.000
Sound level  dB(A) 68
Dust bag/tank cap.  L 25
Weight  kG 72
Dimensions  HxWxL 135x47x77



undefined

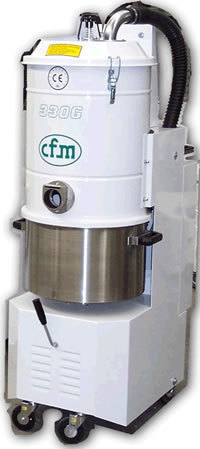

undefined 3306 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2. The structure of this version is the same as the CFM 3156 model but it is larger in size, in capacity and in filter surface. This model is available partially or totally in inox aisi 304.Absolute filter in option.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。此機型結構與CFM 3156相同，只是較大的外型、容積及濾網。此機型部份或全部由不銹鋼AISI 304組成。HEPA過濾器為選配

Available in Z21, Z22, Z2, MAG1, MAG1 DEX versions

提供使用在防爆區域Z21,Z22,Z2,MAG1,MAG1 DEX機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY
Phases  n° 3
Rated power  kW 2,2 / 4
Depression  daPa
Airflow  l/min
Main filter area  cm² 19.500
Sound level  dB(A) 69
Dust bag/tank cap.  L 48
Weight  kG 112
Dimensions  HxWxL 160x62x87

undefined

undefined 3307 MAG

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2.Absolute reliability, this model gives optimum performances in the heaviest duty situations As all the threephase CFM's vacuums, it can work 24 hours a day.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。以所有三相CFM的集塵機而言，此機型對於高粉塵是更理想絕對可靠的選擇，並可全天24小時運轉工作。

Available in MAG1, MAG1 DEX versions.

提供使用在防爆區域MAG1,MAG1 DEX機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 2,2
Depression  daPa
Airflow  l/min
Main filter area  cm²
Sound level  dB(A)
Dust bag/tank cap.  L
Weight  kG
Dimensions  HxWxL

undefined

3308 ATEX

undefinedIndustrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2. Absolute reliability, this model gives optimum performances in the heaviest duty situations As all the threephase CFM's vacuums, it can work 24 hours a day.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。以所有三相CFM的集塵機而言，此機型對於高粉塵是更理想絕對可靠的選擇，並可全天24小時運轉工作。

Available in Z21, Z22, Z2 versions.

提供使用在防爆區域Z21,Z22,Z2機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 2,2 / 4
Depression  daPa
Airflow  l/min
Main filter area  cm² 19.500
Sound level  dB(A) 69
Dust bag/tank cap.  L 100
Weight  kG 198
Dimensions  HxWxL 157x65x125



3508 ATEX
undefined

Industrial vacuum ATEX approved, industries suitable to run in the dust zone 21 and 22 and in the gas zone 2. The most appreciated machine in the mechanical, chemical, food and ceramic industries, is particularly versatile.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。此機型對於機械廠、化學廠、食品廠及陶磁廠的應用最被贊賞，尤其是它的多功能性。

Available in Z21, Z22, Z2 versions.

提供使用在防爆區域Z21,Z22,Z2機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 4 / 7,5
Depression  daPa
Airflow  l/min
Main filter area  cm² 19.500
Sound level  dB(A) 72
Dust bag/tank cap.  L 100
Weight  kG 215
Dimensions  HxWxL 157x65x125



3508W ATEXundefined

Industrial vacuum ATEX approved, industries suitable to run in the dust zone 21 and 22 and in the gas zone 2. The most appreciated machine in the mechanical, chemical, food and ceramic industries, is particularly versatile.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。此機型對於機械廠、化學廠、食品廠及陶磁廠的應用最被贊賞，尤其是它的多功能性。

Available in Z21, Z22, Z2 versions.

提供使用在防爆區域Z21,Z22,Z2機型可供選擇

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 4 / 7,5
Depression  daPa
Airflow  l/min
Main filter area  cm² 19.500
Sound level  dB(A) 73
Dust bag/tank cap.  L 100
Weight  kG 238
Dimensions  HxWxL 159x65x125



3557 MAGundefined

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2. With a very large filtering capacity and a surface of 35,000 cm 2 , this model is suggested for the vacuuming of large quantities of fine and clogging powders.

ATEX認証的工業用吸塵器，適合運作在粉塵防爆區域ZONE 21/22及氣體防爆區域ZONE 1/2。此機型配有很大的過濾器，濾網面積35000平方公分。建議使用在容易阻塞

Available in MAG2, MAG3, MAG2 DEX versions.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 4 / 5,5
Depression  daPa
Airflow  l/min
Main filter area  cm²
Sound level  dB(A)
Dust bag/tank cap.  L
Weight  kG
Dimensions  HxWxL



3558 ATEXundefined

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 1 and 2. With a very large filtering capacity and a surface of 35,000 cm 2 , this model is suggested for the vacuuming of large quantities of fine and clogging powders.

Available in Z21, Z22, Z2 versions.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY
Phases  n° 3
Rated power  kW 4 / 7,5
Depression  daPa
Airflow  l/min
Main filter area  cm² 35.000
Sound level  dB(A) 73
Dust bag/tank cap.  L 80
Weight  kG 238
Dimensions  HxWxL 159x65x125

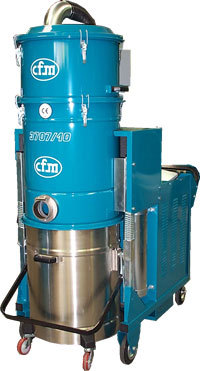

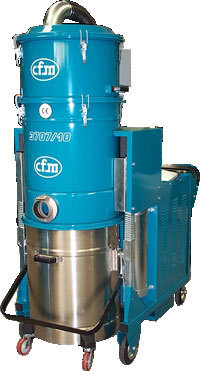

undefined 3707/10 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 22 of high performance and a large filtering area . This vacuum is designed to collect at a high speed, large quantities of material in difficult situations.

Available in Z22 version.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY
Phases  n° 3
Rated power  kW 7,5
Depression  daPa 4.200
Airflow  l/min 13.500
Main filter area  cm² 45.000
Sound level  dB(A) 78
Dust bag/tank cap.  L 175
Weight  kG 310
Dimensions  HxWxL 181x82x160



undefined

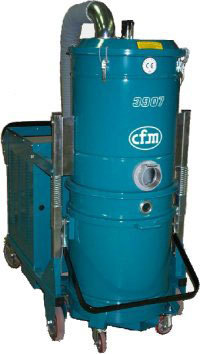

3907 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 2. Designed for sectors where work requires a high level of vacuum power, for examplevacuuming heavy swarf, debris, etc….

Available in Z21, Z22, Z2 versions.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 11 / 15
Depression  daPa
Airflow  l/min
Main filter area  cm² 45.000
Sound level  dB(A) 78
Dust bag/tank cap.  L 175
Weight  kG 382
Dimensions  HxWxL 181x82x160




undefined

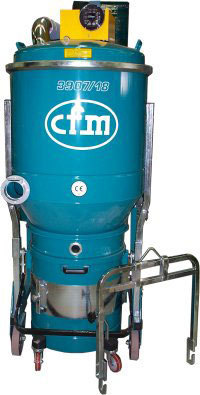

3907/18 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 2. Designed for sectors where work requires a high level of vacuum power, for examplevacuuming heavy swarf, debris, etc….

Available in Z21, Z22, Z2 versions

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 12,5 / 18,5
Depression  daPa
Airflow  l/min
Main filter area  cm² 45.000
Sound level  dB(A) 78
Dust bag/tank cap.  L 175
Weight  kG 480,5
Dimensions  HxWxL 181x82x160




undefined

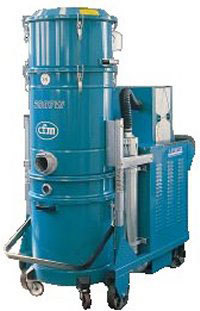

3907W ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 2. Designed for sectors where work requires a high level of vacuum power, for examplevacuuming heavy swarf, debris, etc….

Available in Z21, Z22, Z2 versions.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 11 / 15
Depression  daPa
Airflow  l/min
Main filter area  cm² 45.000
Sound level  dB(A) 78
Dust bag/tank cap.  L 175
Weight  kG 309,5
Dimensions  HxWxL 181x82x160




undefined
3997 ATEX

Industrial vacuum ATEX approved, suitable to run in the dust zone 21 and 22 and in the gas zone 2. Mobile vacuum unit, for very heavy work. It is used in heavy industries such as foundries, cementeries, paper industries, cereals and big mechanical industries.
It is equipped with an electric filtershaker system.
Very often it is used as centralized vacuum unit.

Available in Z21, Z22, Z2 versions.

CFM ATEX PRODUCTS ARE COVERED BY AN EXAMINATION CERTIFICATE ISSUED BY A NOTIFIED BODY

Phases  n° 3
Rated power  kW 18,5 / 20
Depression  daPa
Airflow  l/min
Main filter area  cm² 65.000
Sound level  dB(A) 80
Dust bag/tank cap.  L 175
Weight  kG 645
Dimensions  HxWxL 215x90x192
